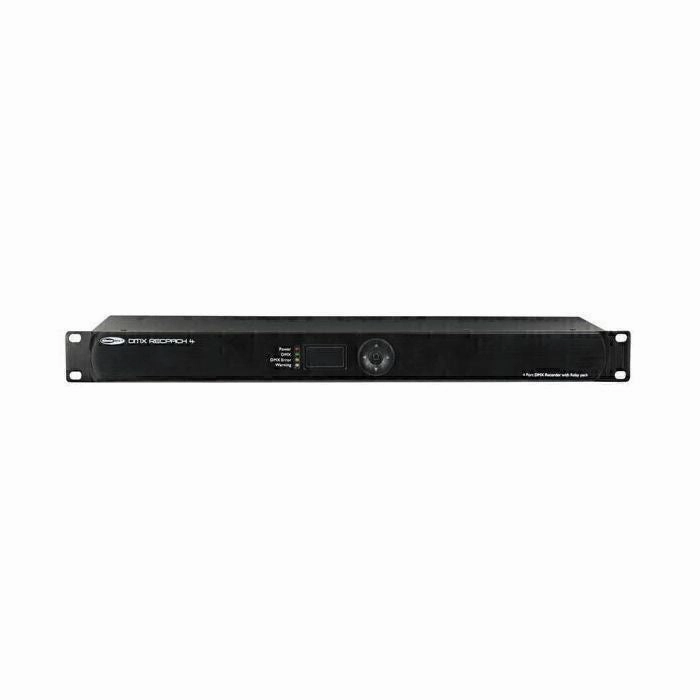

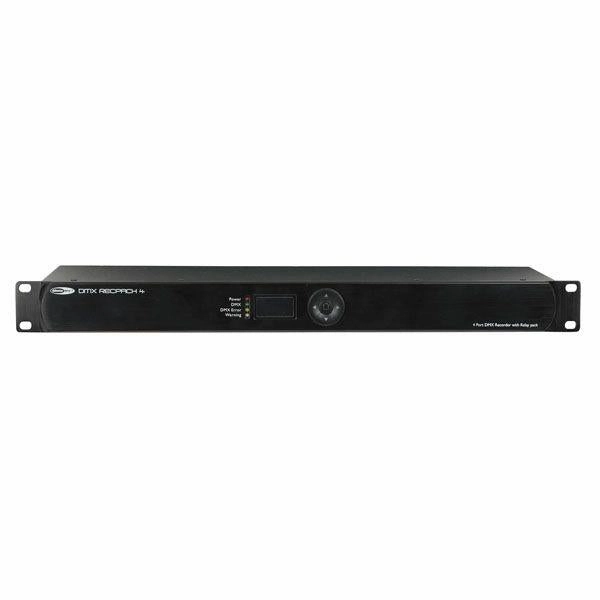

The Showtec DMX Recpack 4 is a combination of a DMX recorder, a switch pack and a programmable trigger with timer function. It has 4 individual programmable DMX and switch outputs. Each DMX output can play pre-recorded scenes or shows. Besides the 4 DMX outputs, it also has 4 switchable 230V outputs. Each 230V output has its own individual current monitor which can be limited to a personal max current. Scenes, shows, chases and switches can be triggered by DMX or by weekly and daily timers. The user-definable DMX triggers make it possible to start, stop DMX or switch on and off at specific channel values. The Showtec DMX Recpack is a solution for automation of intelligent lights in combination with all kinds of electric devices. The ideal unit for shops, theme parks, museums and all other situations with the need for pre-programmed and triggered shows.

Features
4 Separate recordable DMX and switch outputs
Programmable daily & weekly timers
Programmable DMX input triggers
8GB internal memory
Manual, Auto, Semi-Auto Recording modes

Specifications
Power Input 100-240VAC 50/60Hz
Power Consumption @ Full Load 3450W
Programmable DMX outputs 4pcs
Programmable output switches 4pcs
Power output 15A each channel / 15A Max Total
Protocol DMX-512
Internal memory 8GB

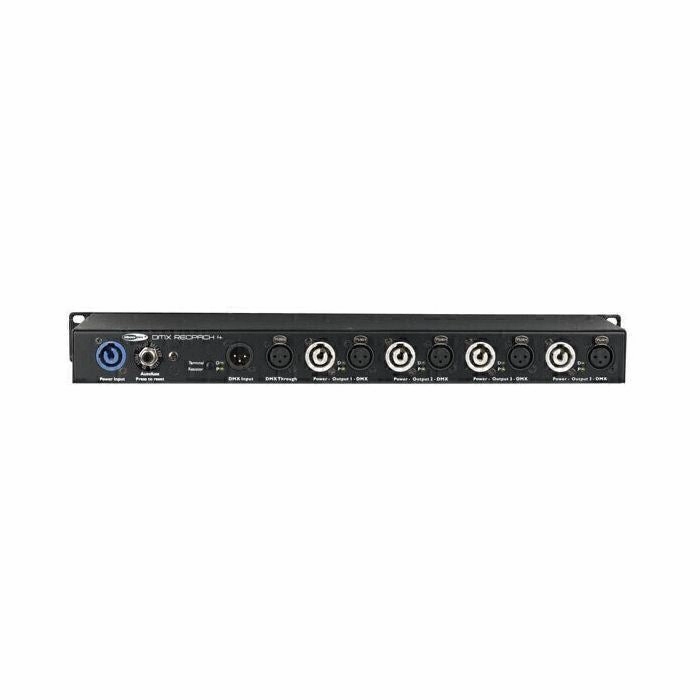

DMX Input connections 3 pole XLR
DMX Output connections 3 pole XLR
Power input connector Pro Power blue
Power output connectors Pro Power white

Dimensions
483 x 130 x 44mm

Weight
2.4 Kg
