ACASI Inline Bottle Capper with Vibratory Cap Feeder
Model TruCap-X-Vib

Starting Prices:

Tightener Features:

• Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
• Heavy duty linear carriage system for height adjustability.
• All shafts and threaded rods manufactured in 304 stainless steel.
• Heavy duty casters standard.
• No change of parts needed for a wide range of containers.
• Front covers with safety interlock switches standard.
• Top driven to insure no product spillage into drive assembly.
• Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment).

• 4, 6, or 8 spindle configurations available, single gear box driven.

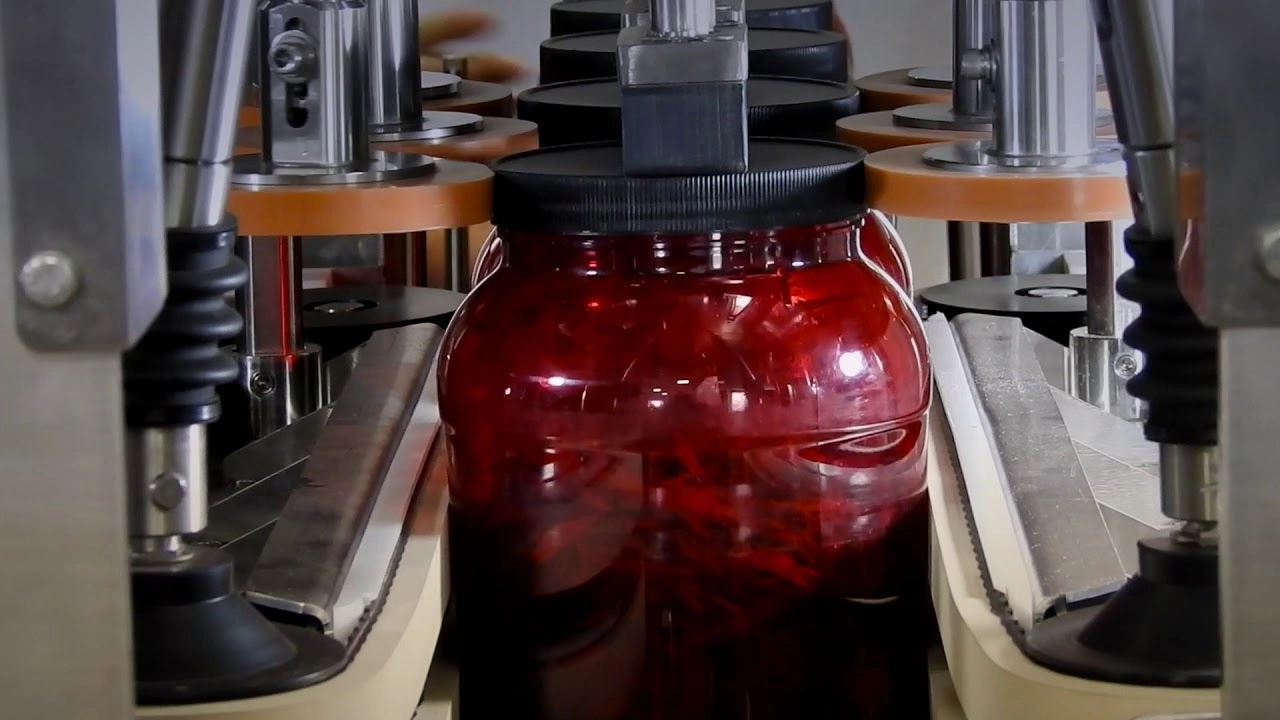

• Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.
• Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased).
• Clutches located away from capping discs to avoid corrosion.
• Heavy duty gear driven mechanism, no belts used for power transmission.
• Adjustable speed 3/4 Hp drive motor for capping discs.
• Optional second drive motor to rotate the first set of capping discs on the opposite direction.
• Capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials.
• Independent adjustment for front or back capping discs.
• Capping disc position is adjustable while the machine is running, without opening the safety covers.
• Fully adjustable for cap sizes ranging from 8 mm to 130 mm in diameter.

• Bottle belt width adjusted via front knobs.
• Bottle belt height adjusted via front knobs.
• Heavy duty gear drive mechanism, no belts used for power transmission.
• Adjustable speed heavy duty 1/2 Hp, motor gearbox.
• Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers. Optional double belt assembly with independent height and angle adjustment.
• Optional double belt assembly with independent heifht and angle adjustment.

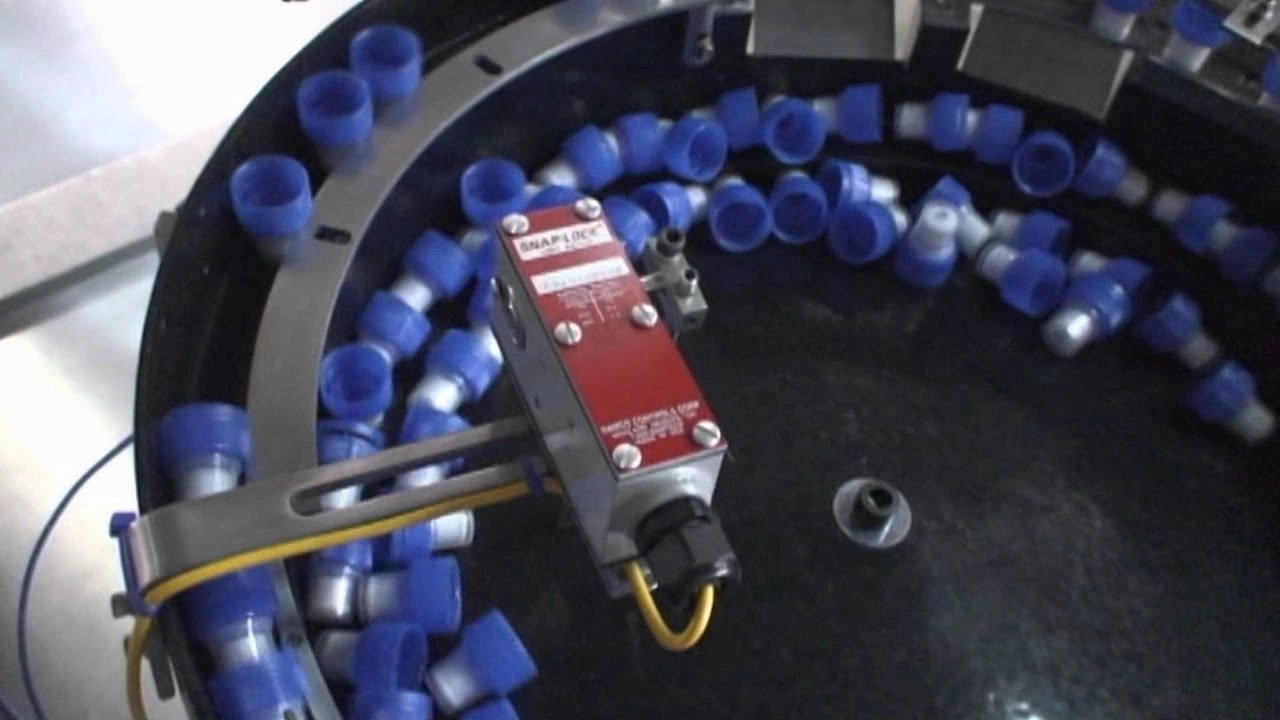

Vibratory cap feeder features:

• Aluminum casting with polyuretrane liner to minimizes cap markings-scratching.
• 24-32 inch diameter feeding disc - ramp assembly.
• Bad caps rejected mechanically, minimum air usage.
• Cap by deman controlled by photoelectric sensor.
• Bowl tooled for one model cap.
• Adjustable vibration and speed control.
• Heavy duty extra heavy base for better vibration transmission.
• Sortes mounted on machine, no need for independent height adjustment.
• Includes filter pressure regulator.
• Flow controls on all air hoses.

Cap hopper feature:

• 3 Cubic feet stainless steel deposit.
• Vibrator with independent control mounted on cap hopper.
• Low friction limit switch for cap level sensing on centrifugal cap feeder.

Electric and pneumatic requirements:

• 220 Volts, Single phase, 50/60Hz, 15 Amps.
• 10 CFM @ 80 p.s.i.
